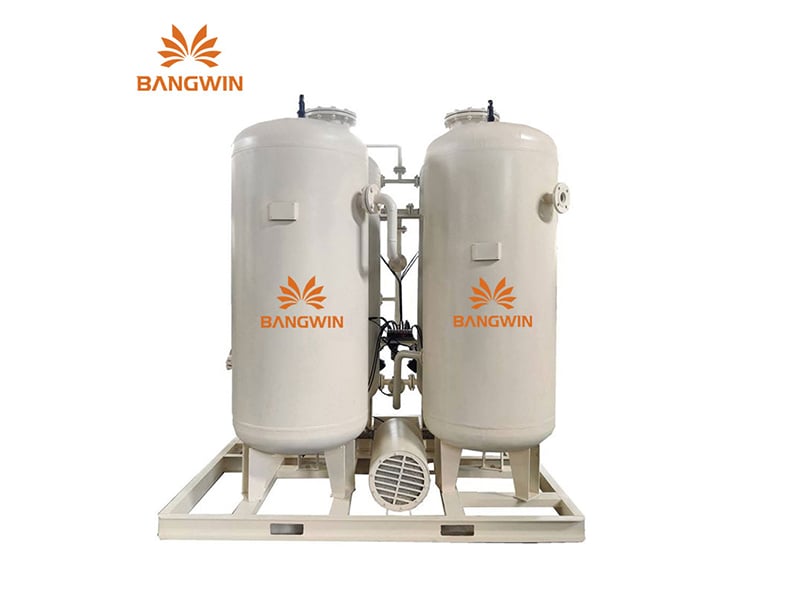

VPSA Oxygen Plant

WORKING PRINCIPLE

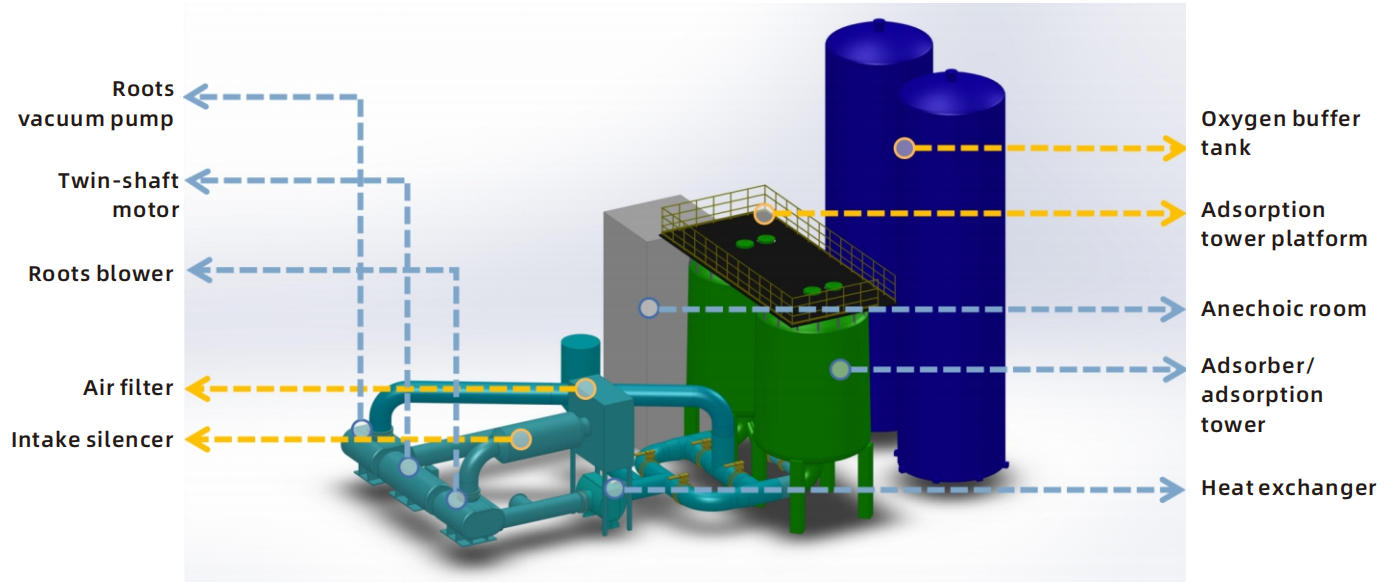

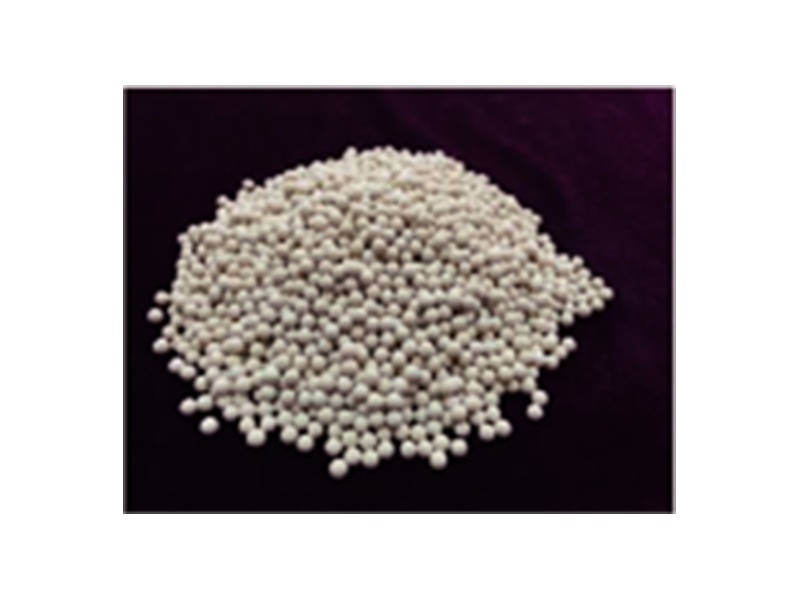

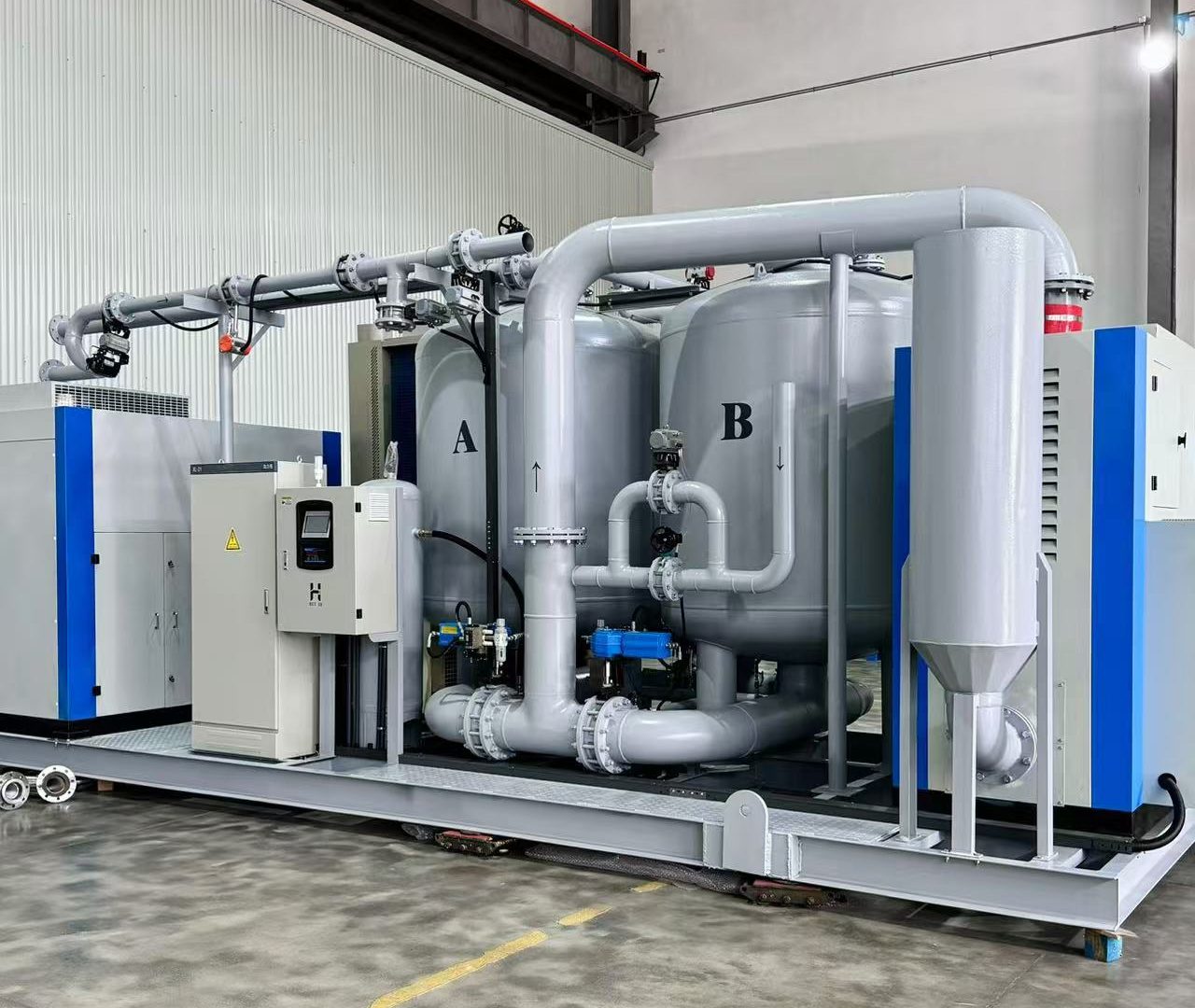

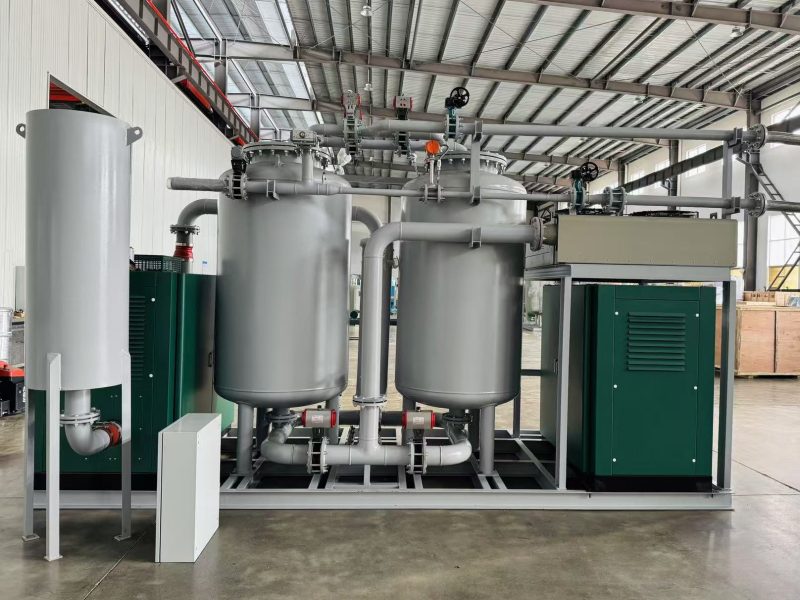

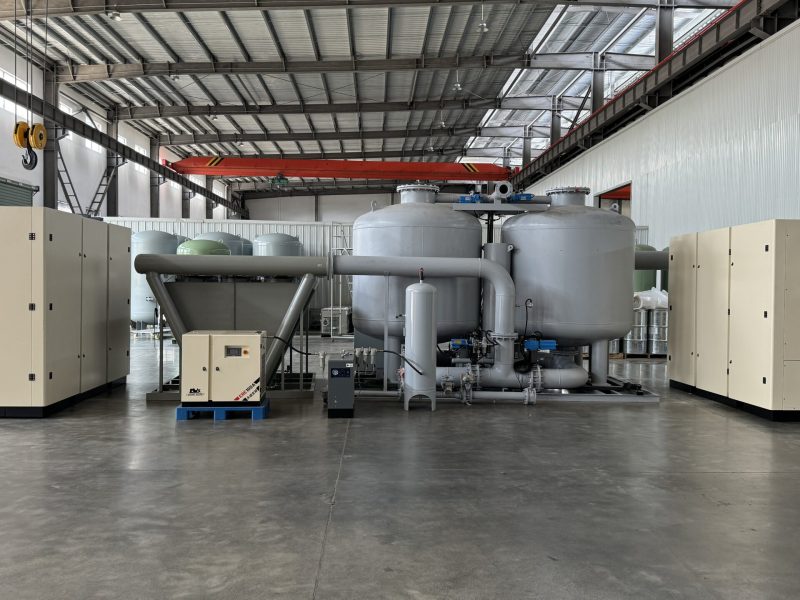

Based on the principle of pressure swing adsorption (PSA), zeolite molecular sieves are used as the adsorbent. Due to the selective adsorption characteristics of zeolite molecular sieves, nitrogen is largely adsorbed by them, while oxygen is enriched in the gas phase, achieving nitrogen-oxygen separation under the action of PSA. A two-tower process is employed: one tower adsorbs and produces oxygen, while the other tower undergoes negative pressure desorption and regeneration. The opening and closing of pneumatic valves are controlled by a PLC intelligent program, allowing the two towers to cycle alternately, continuously producing high-quality oxygen.

Technical Features

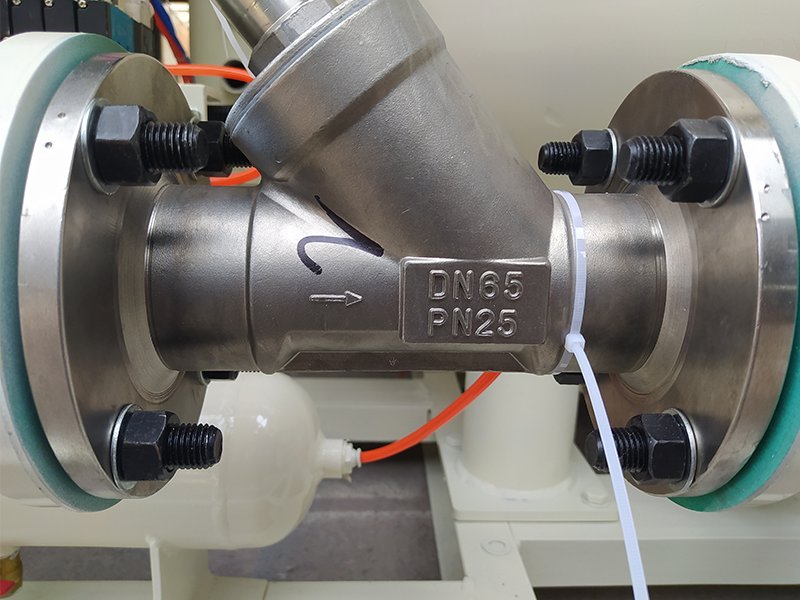

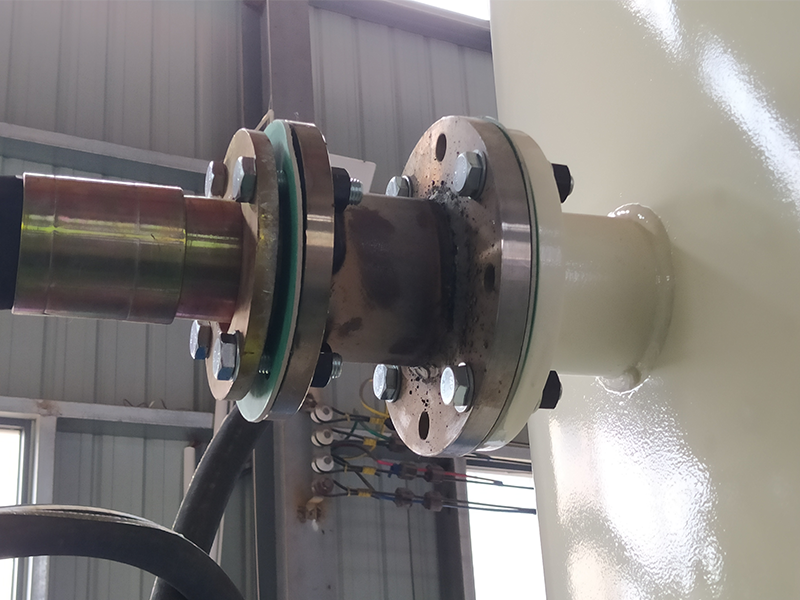

1. High-performance pneumatic valves using high-frequency cylinders; imported Metso positioners; SMC solenoid valves and quick-opening valves; lifespan exceeding 3 million cycles;

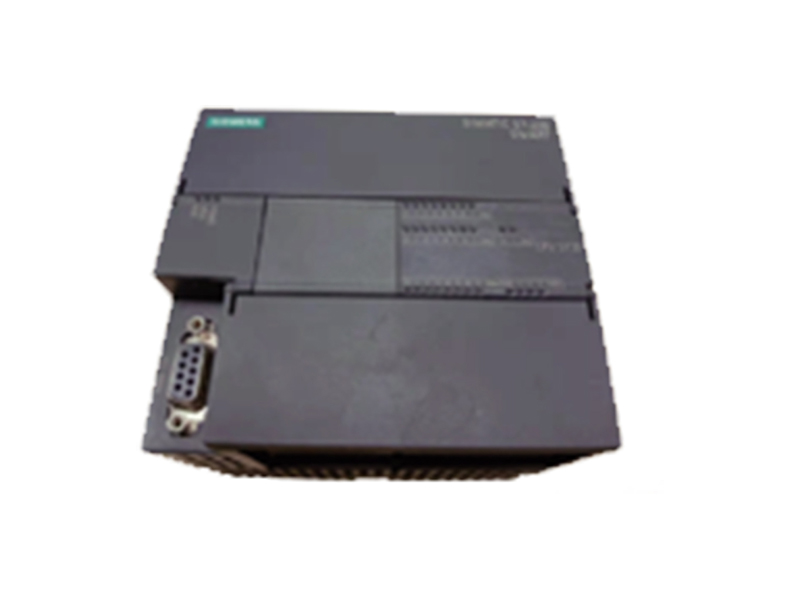

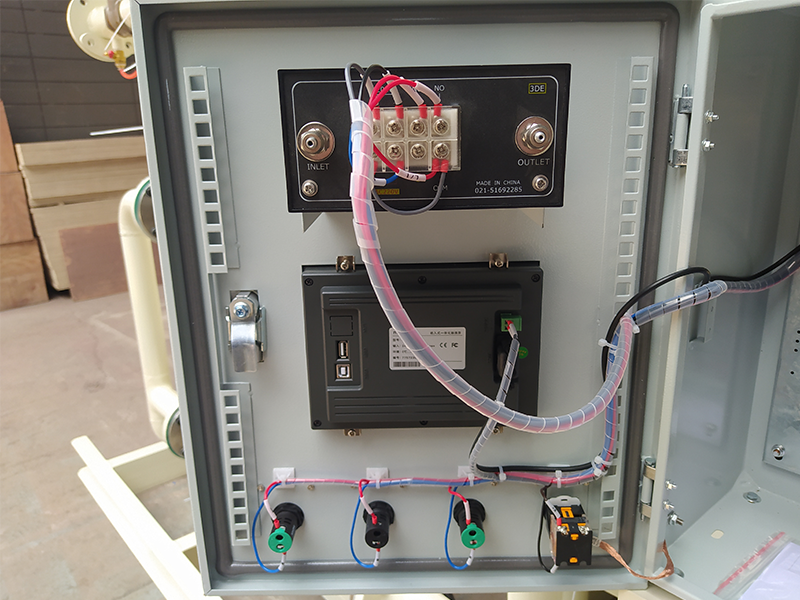

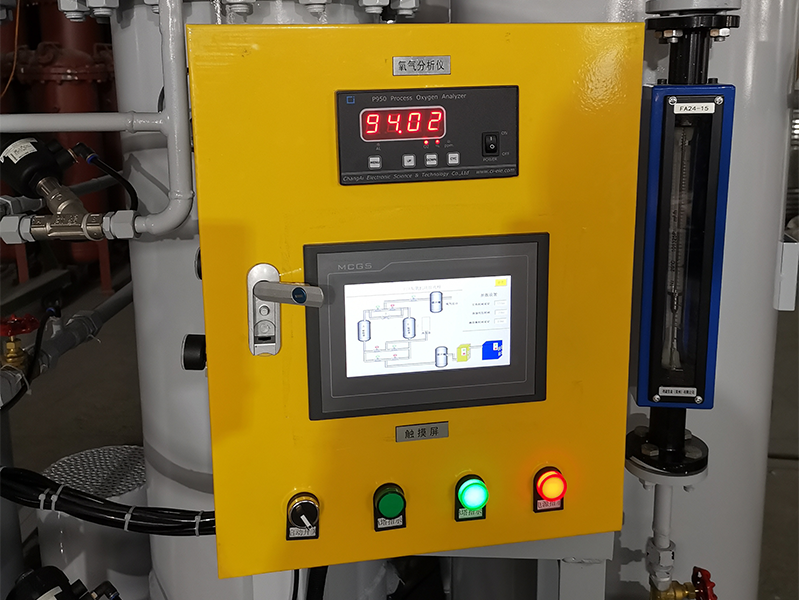

2. PLC intelligent program controller, easy to operate and stable;

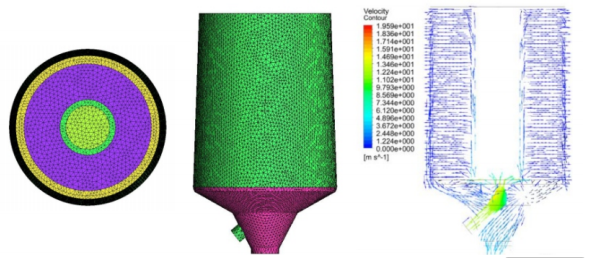

3. Patented airflow distribution system, significantly improving adsorption efficiency;

4. Airbag-type compression device prevents molecular sieve pulverization;

5. Unique blizzard-style filling method for more uniform distribution;

6. Minimum power consumption for oxygen production per standard cubic meter of pure oxygen can reach 0.28 KW/h.

Technical Specifications

1. Oxygen Production: 50～7500 Nm³/h

2. Oxygen Purity: 28～94%

3. Oxygen Pressure: 0.015～2 MPa Oxygen Dew Point: ≤-45℃

4. Sound Insulation and Noise Reduction: ≤75dB 1 meter outside the factory building

Adsorption tower type

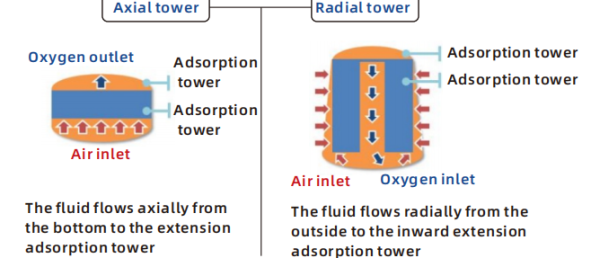

Radial tower design

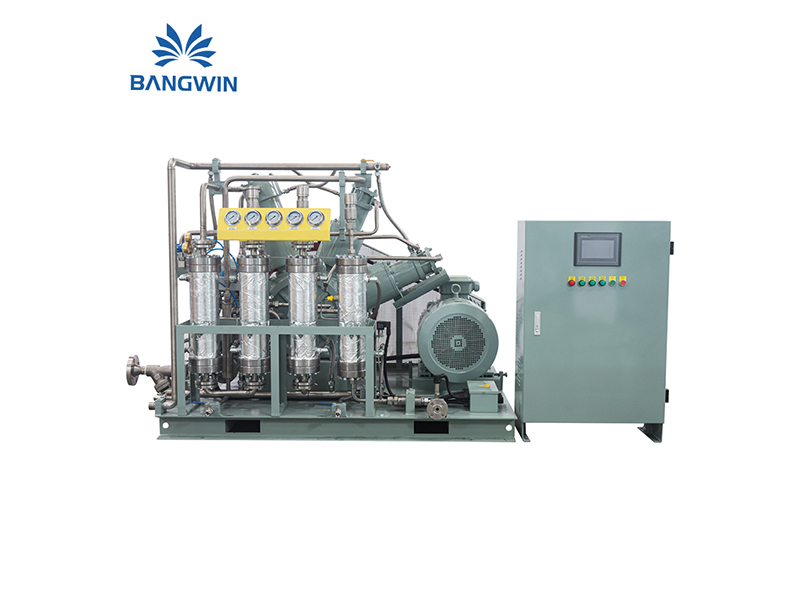

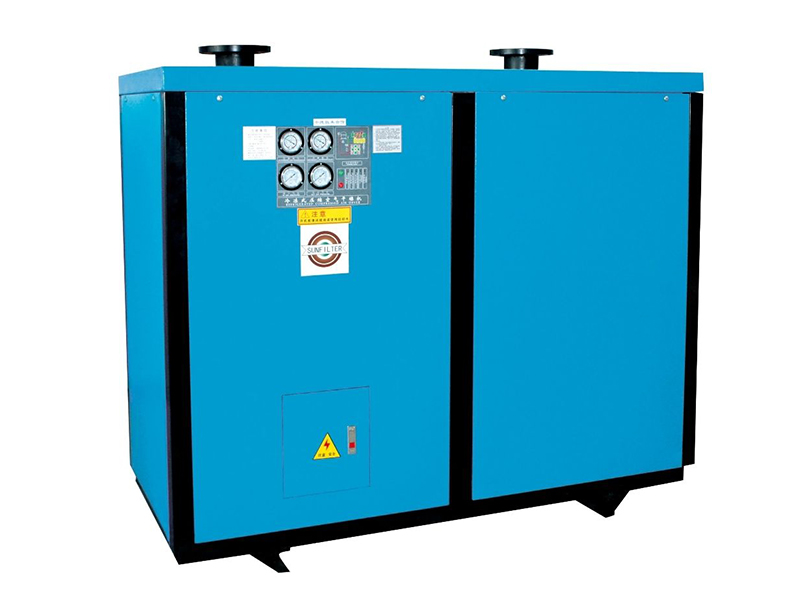

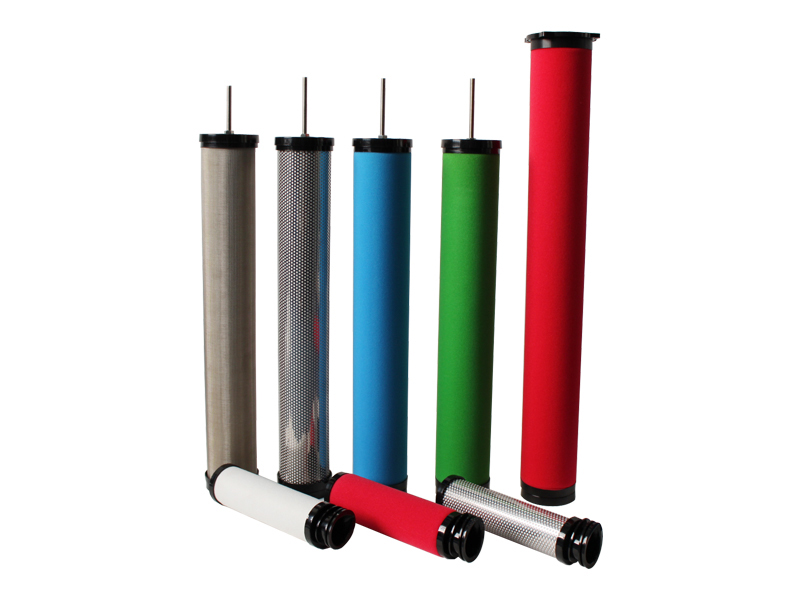

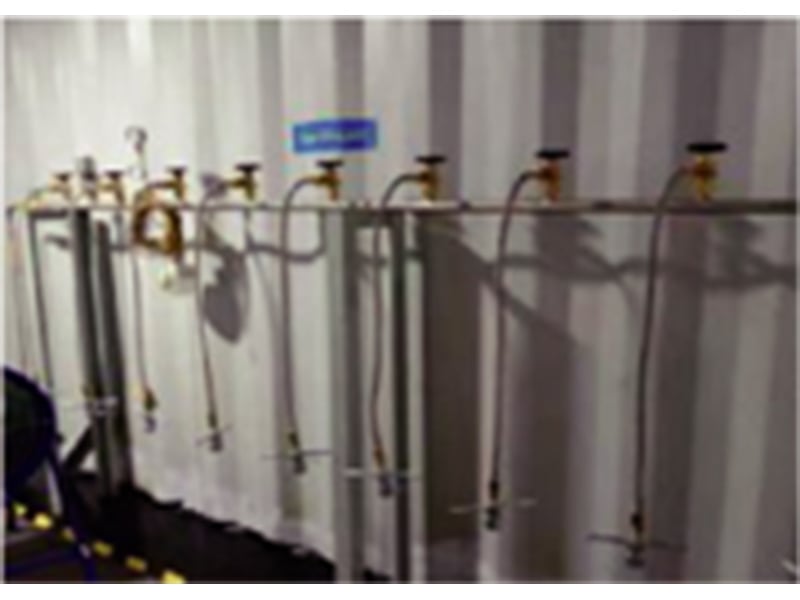

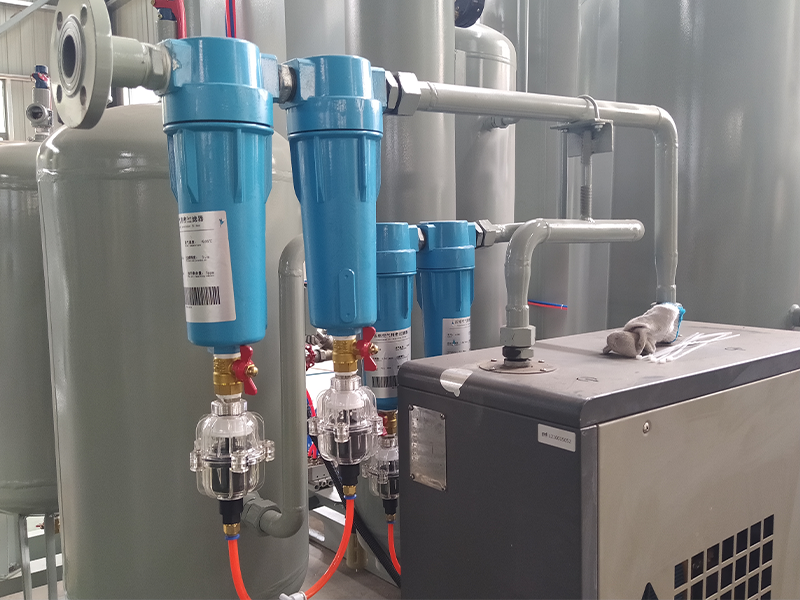

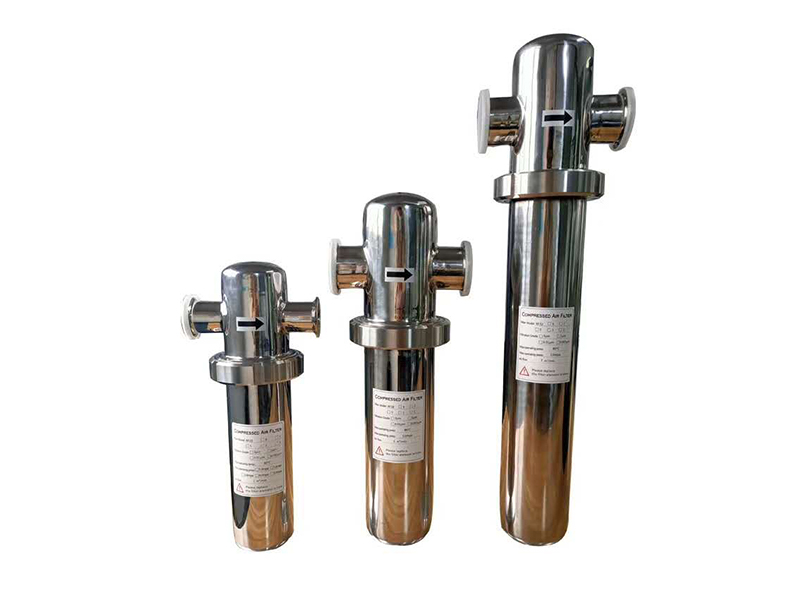

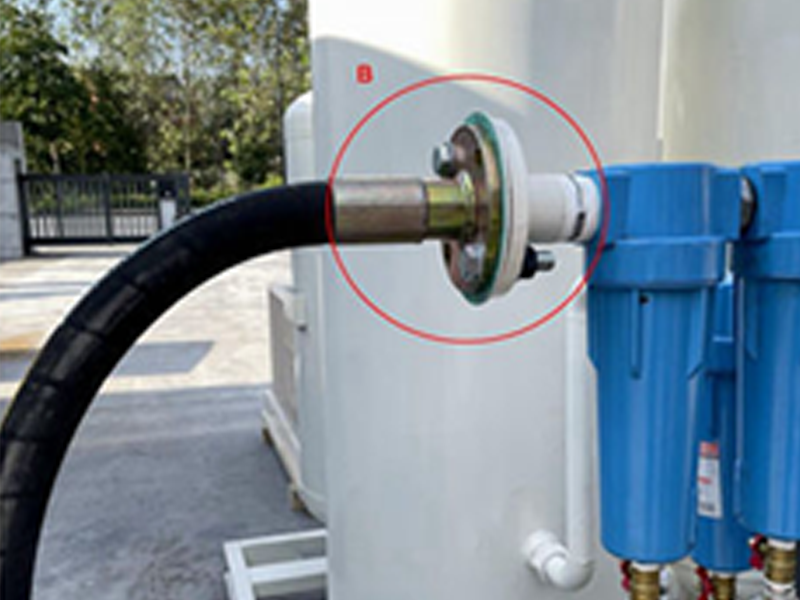

Core components

Parameters

Main technical parameters of VPSA oxygen production: Purity 80%

Model specification	HL-500	HL-1000	HL-2000	HL-3000	HL-4500	HL-6250	HL-7500
Gas production Nm3/h	500	1000	2000	3000	4500	6250	7500
Voltage	10ky	10kv	10kv	10kv	10kv	10kv	10kv
Installed power KW	250	435	715	1120	1600	2240	2500
Valve gas consumption m3/min	1	1.5	2	3	5	6	6.5
Cooling water circulation m3/h	20	40	80	110	120	130	140
Soft water consumption m3/h	1.92	2.7	2.88	3.9	4.2	4.5	4.8

Main technical parameters of VPSA oxygen production: Purity 93%

Model specification	HL-200	HL-300	HL-400	HL-500	HL-600	HL-800	HL-1000
Gas production Nm3/h	200	300	400	500	600	800	1000
Voltage	380v	0380v	380v	380v	380v	10kv	10kv
Installed power KV	120	165	200	270	317	380	450
Valve gas consumption m3/min	0.5	0.7	0.9	1.1	1.4	1.6	2.0
Cooling water circulation m3/h	11	15	20	26	30	38	55
Soft water consumption m3/h	12	1.8	1.98	2.1	2.1	2.4	2.7

Modelspecification	HL-1200	HL-1600	HL-2000	HL-3000	HL-3600	HL-4500	HL-5500
Gas production Nm3/h	1200	1600	2000	3000	3600	4500	5500
Voltage	10kv	10kv	10kv	10kv	10kv	10kv	10kv
Installed power KV	565	715	1000	1250	1600	2000	2500
Valve gas consumption m3/min	2.0	2.4	3.0	3.3	4.2	5.5	6.5
Cooling water circulation m3/h	62	90	100	110	120	130	140
Soft water consumption m3/h	2.7	2.88	3.3	3.6	4.2	4.5	4.8
